wholesale Strong NdFeB Rectangular Magnets

wholesale Strong NdFeB Rectangular Magnets

Magnetisation Grade: N42M
Material: Sintered Neodymium-Iron-Boron (Rare Earth NdFeB)
Plating / Coating: Nickel (Ni-Cu-Ni)
Magnet Shape: Block, Rectangular, Rectangle, Square
Magnet Size:
Total Length (L): 5 mm
Total Width (W): 5 mm
Total Thickness (T): 5 mm
Magnetisation Direction: Axial
Residual Magnetic Flux Density (Br): 1280-1320 mT (12.8-13.2 kGs)
Energy Density (BH)max: 318-342 KJ/m³ (40-43 MGOe)
Coercivity Force (Hcb): ≥ 955 kA/m ( ≥ 12.0 kOe)
Intrinsic Coercivity Force (Hcj): ≥ 1114 kA/m ( ≥ 14 kOe)
Maximum Operation Temperature: 100 °C
Tolerance: ±0.05 mm


Product Detail

Product Tags

magnet ningbo

Honsen Magnets supply pre-assembled motor parts with glued permanent magnets and metal body according to customers’requirements.we are a manufacturer of permanent magnets for many years; you don’t have to worry about another components, quality inspection etc… Because we have modern assembly line and first rate machining equipments,including CNC lathe, internal grinder, plain grinder, milling machine,etc.

Assembly tips: Neodymium magnets are often assembled into products using “superglues” such as Loctite 325. Always ensure that bonding surfaces are clean and dry prior to bonding.

Detailed parameters

Performance Table

are neodymium magnets pure neodymium

Demagnetization curve

N
NM
NH
NSH
NUH
NEH

Magnetic direction

Magnetic Directions

Product Details

Product Show

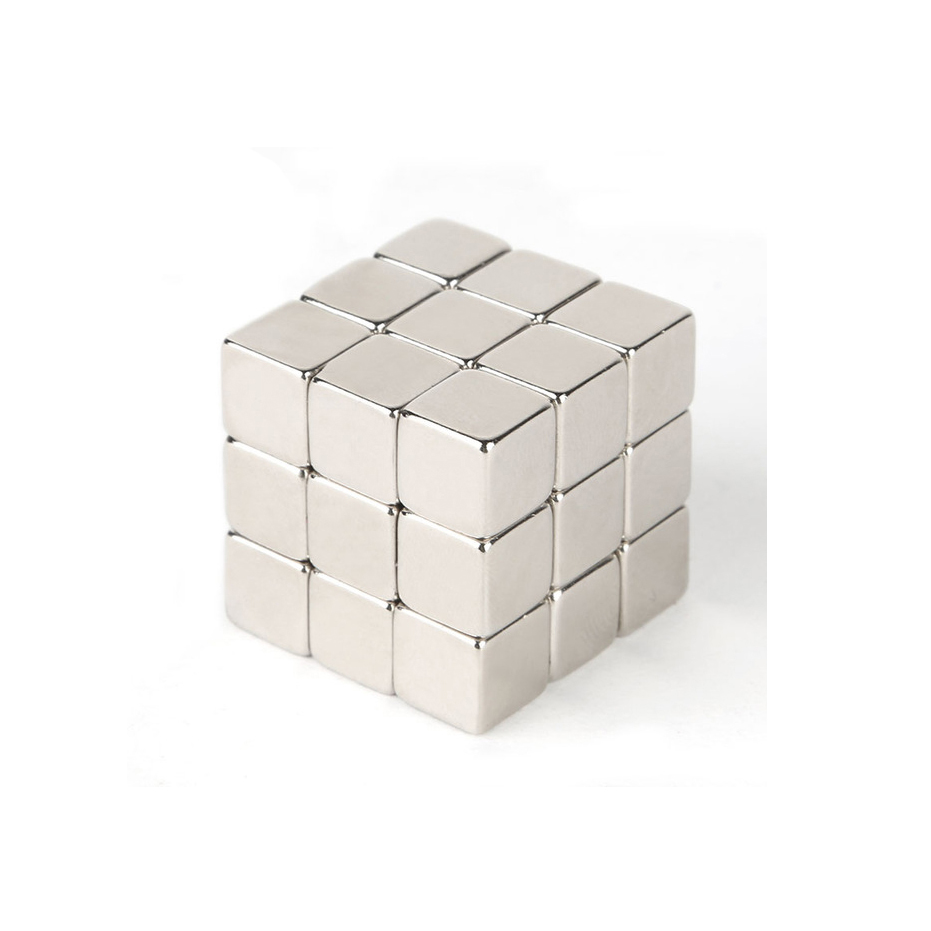

5x5x5mm Cubes with NiCuNi Coating  (11)
5x5x5mm Cubes with NiCuNi Coating  (9)
5x5x5mm Cubes with NiCuNi Coating  (7)

Product flow chart

are neodymium magnets pure neodymium

Why Choose Us

Equipment Show

Quick-setting melting furnace
Slicer
Hydrogen crushing furnace
Wire cutting machine
Air Flow Mill
Multi-line cutting machine
Forming presses
Chamfering machine
Isostatic pressure equipment
Fully automatic plating
Vacuum sintering furnace
包装生产线

Certifications

14001
16949
45001
Reach
RoHs

Packing & Delivery

Packing & Delivery

Company Show

大楼
大厅
办公室
休息区
小会议室
大会议室
